Topcon ES602G Total Station

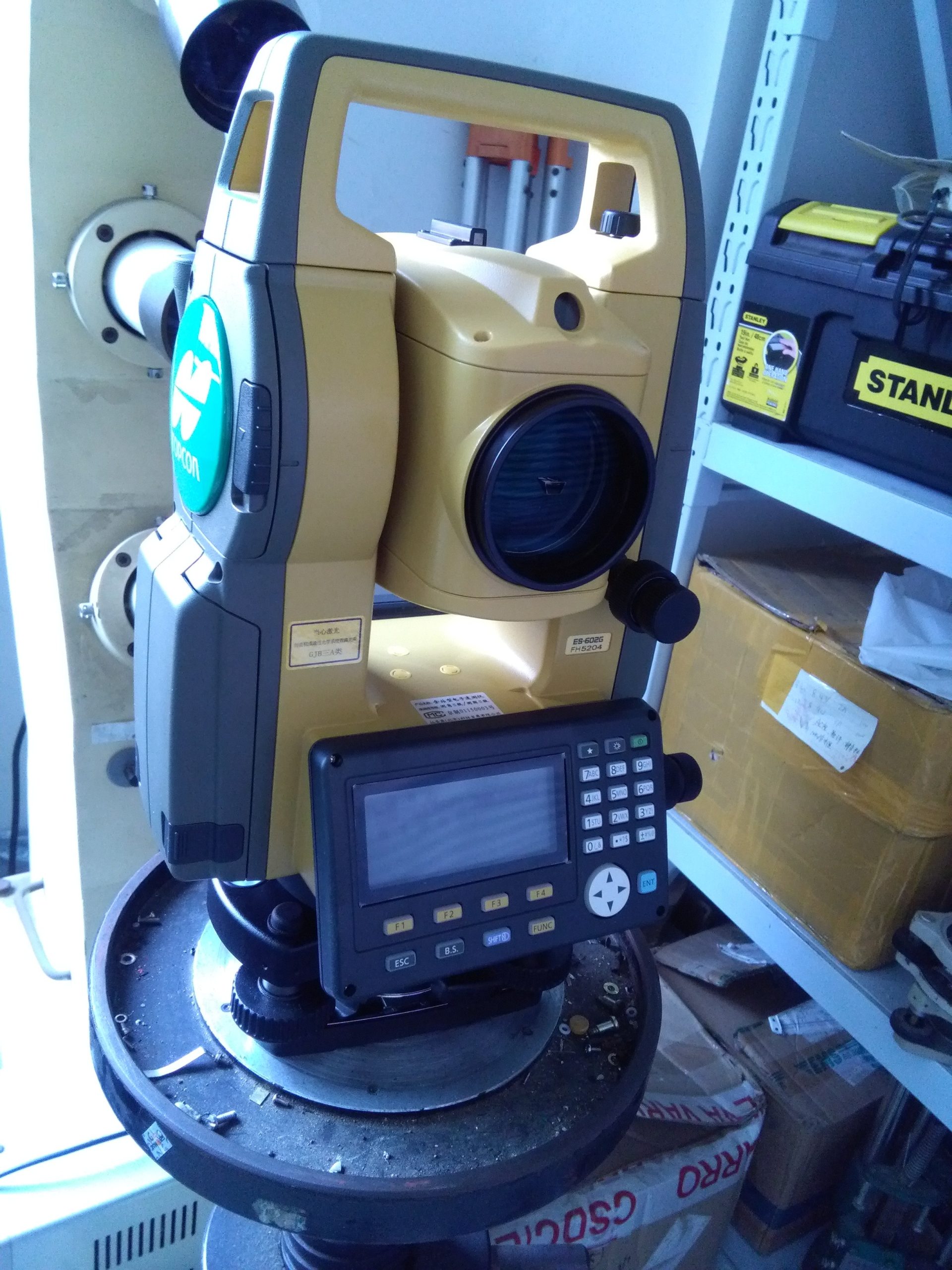

Topcon ES602G Total Station - Image 2

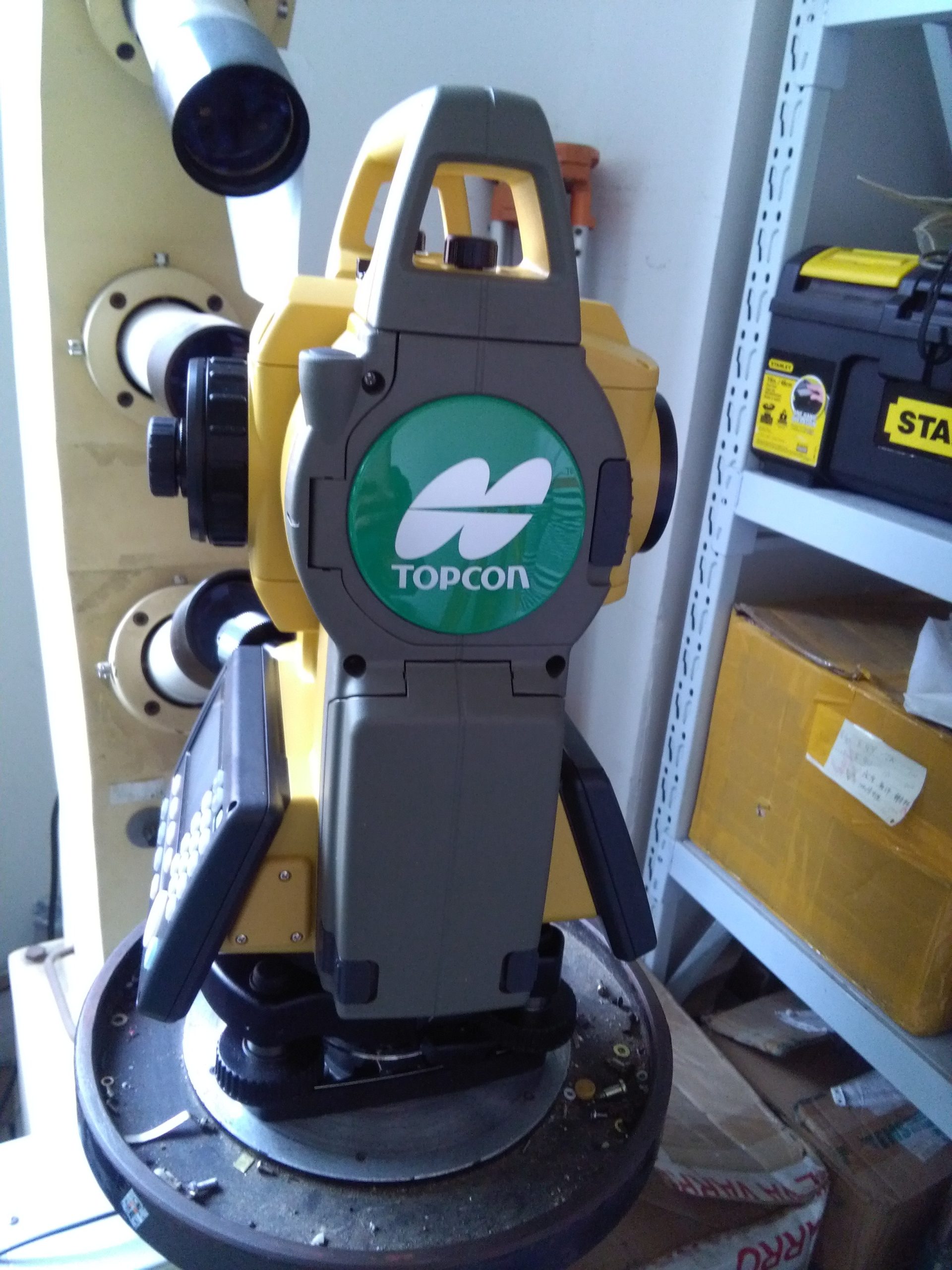

Topcon ES602G Total Station - Image 3
Topcon ES602G Total Station - Image 4

Topcon ES602G Total Station

SKU: a79fb29c81d6
In Stock

$3,680.00

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+800) 1234 5678 90 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Detail Information
Highlight:

reflectorless total station

,

manual total station



Product Description



ES-600G?Technic Data

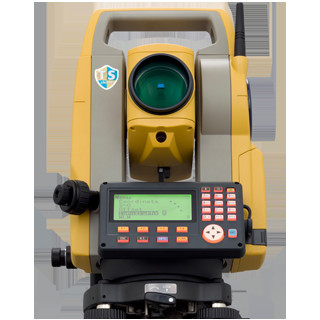

Topcon ES602G Total Station 0


Model ES-602G ES-605G
Telescope
Magnification /Resolution 30X/2.5″
Others Length of Lens: 171mm,Objective Aperture :45mm(EDM:48mm),Erect, Field Of View: 1?30¡ä(26m/1,000m),Minimum Focus: 1.3m, Back light:5 Class
Angle Measurements
Minimum Reading 1″/5″
Angle Measurements Accuracy (ISO17123-3:2001) 2″ 5″
Dual Axis Compensator/Collimation Error Correction Liquid twin screw tilt sensor

,Compensator Range ¡À6¡ä/Collimator Correction
Measuring Distance Part
Laser output grade Non prism:3R grade ,prism /reflctor sheet 1 grade
Measuring Range
(the general weather condition )		 Non prism 0.3¡«500m
Reflector Sheet RS90N-K:1.3¡«500m£»RS50N-K:1.3¡«300m£»RS10N-K:1.3¡«100m
Mini Prism 1.3¡«500m
Single Prism 1.3¡«4,000m/ good weather condition *6:1.3¡«5,000m
Mini Display Fine Measuring/Rapid Measuring:0.001m Tracking:0.01m
Distance Measuring Accuracy
(ISO17123-4:2001)		 Non Prism (3+2ppm¡ÁD)mm*7
Reflector Sheet (3+2ppm¡ÁD)mm
Prism (2+2ppm¡ÁD)mm
Measuring Time Fine:0.9s,Rapid :0.7,Tracking:0.3s
Port and Data Management
Display/ Key Board Adjective Contrast Ratio ,with backlight 192¡Á80point ,Dot Matrix LCDS graphic display / with backlight 25 key ( Alphabet Number keyboard) .
Operating Panel Double Side
Trigger Key On the right side of instrument, A key Trigger
Data memory Internal Memory About 10,000 points
External Memory USB flash Memory (Max. 8GB)
Port RS-232C serial port,USB2.0(A port,to use connect with U display)
Bluetooth Model (optional) 1 Grade Bluetooth, Ver.2.1 +EDR,Transfer Distance:300m*10
Others
Laser Alignment Coaxial red EDM laser beam
Guid light Green Laser Diode(524nm)and red laser Diode(626nm),Work Rang: 1.3¡«150m
Spirit Level Electronic Spirit Level 6¡ä(inner circle )
Circle Spirit Level 10¡ä/2mm
Laser Plummet ( Optional) 2 Grade laser products, Red laser Diode (635nm¡À10nm),Plummet Accuracy: ¨Q1.0mm/1.3m
Optics Plummet Magnification:3X,Minimus Focus: 0.3m(From Tribrach)
Dustproof and Waterproof IP66(ICE 60529:2001)
Work Temperature -20¡«+60¡æ
Size(including handle) 191mm(W)¡Á181mm(L)¡Á348mm(H)
Weight (including Handle and Battery) 5.6kg
Power System
Battery BT-L2 On Board Battery Recharger Battery
Work Time About 25 Hours ( the different between the angle measuring and distance measuring 1 time /30s)
