Survipod – Offset Boltfix

Description

Product Description

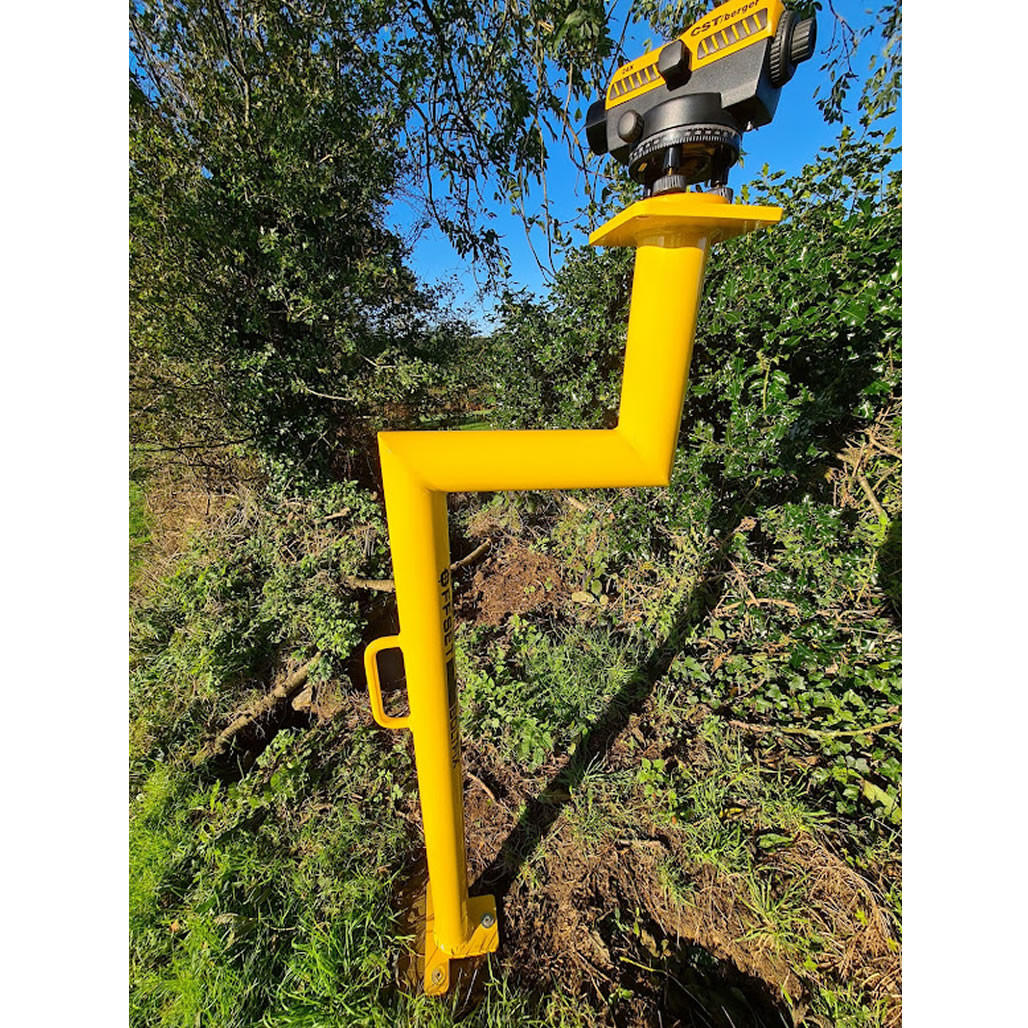

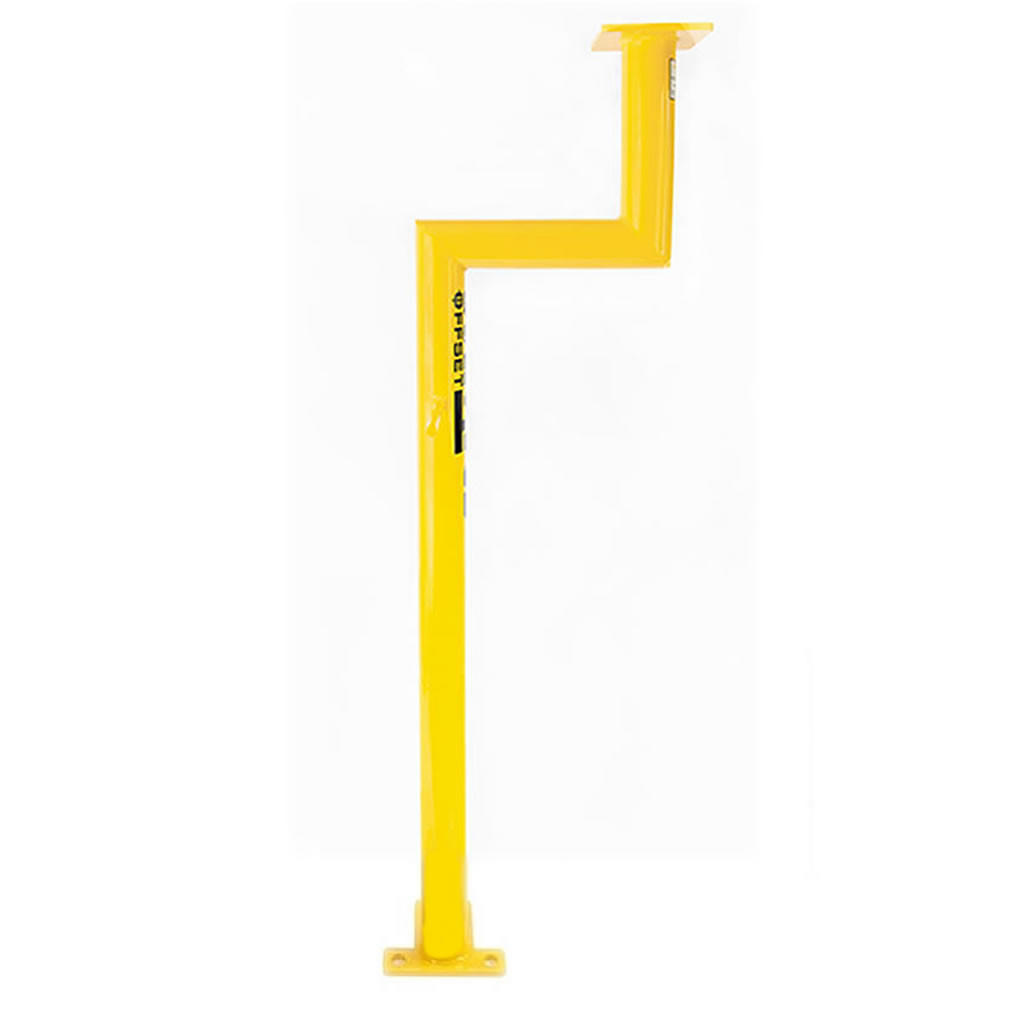

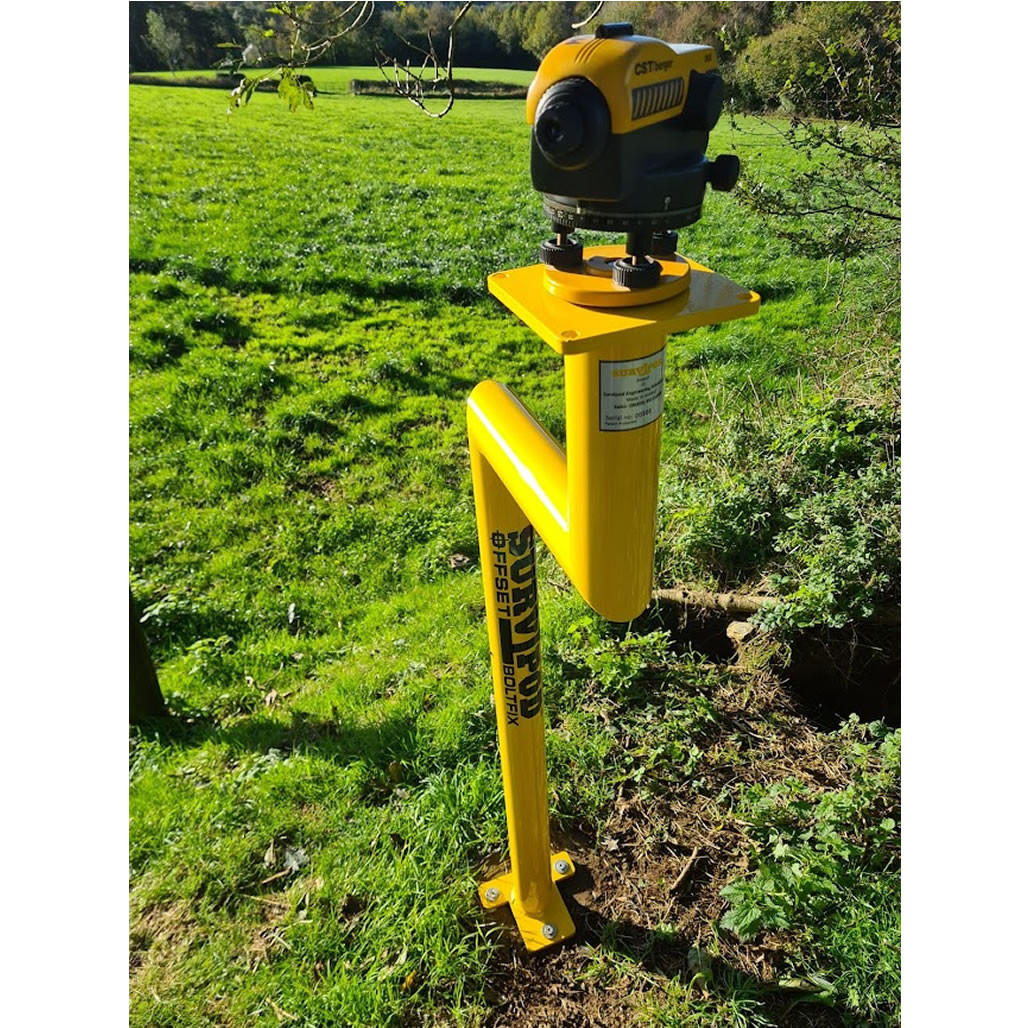

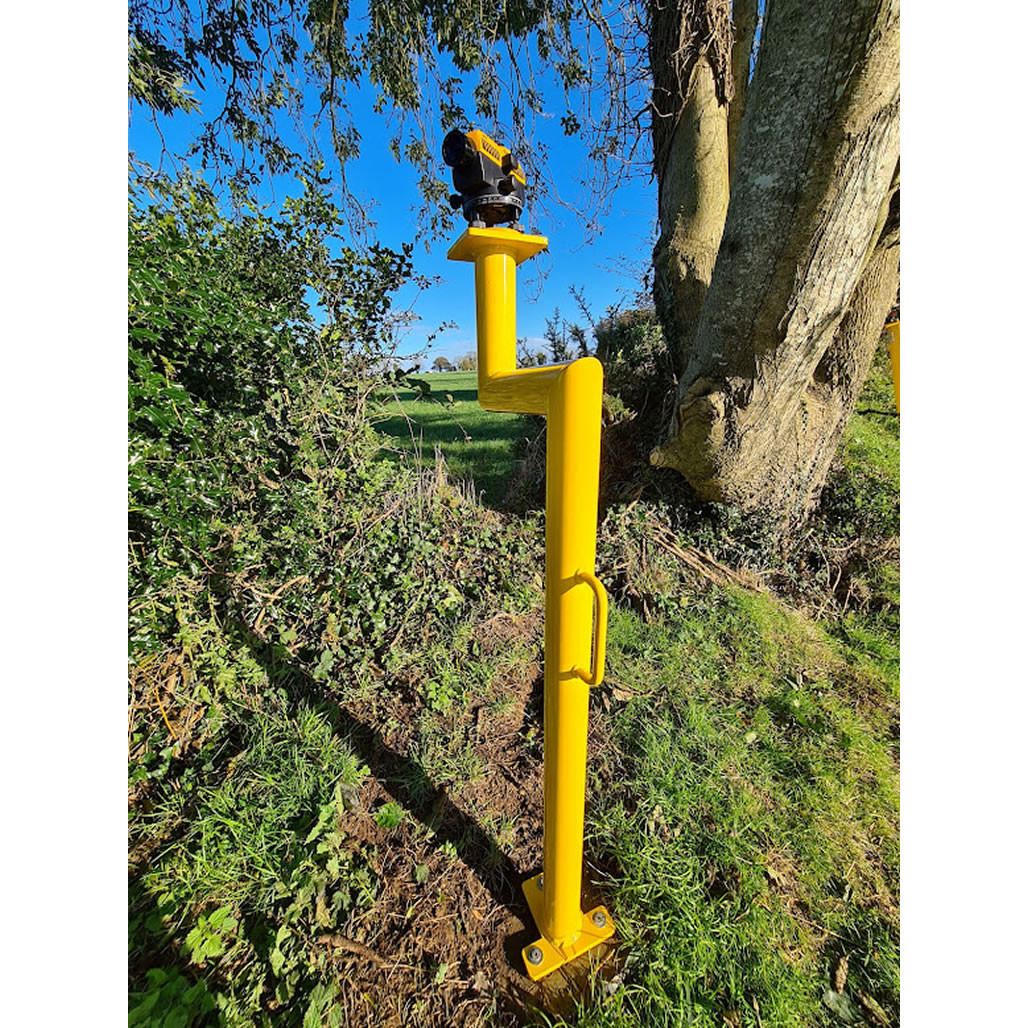

The Offset Survipod Boltfix is an innovative setting out tool that replaces the conventional and often unstable tripod. It acts as a robust and stable platform, enabling accuracy and consistency for site set-out or layout engineers. The added benefit with this product is that it avoids the vertical reinforcement by virtue of the offset design.

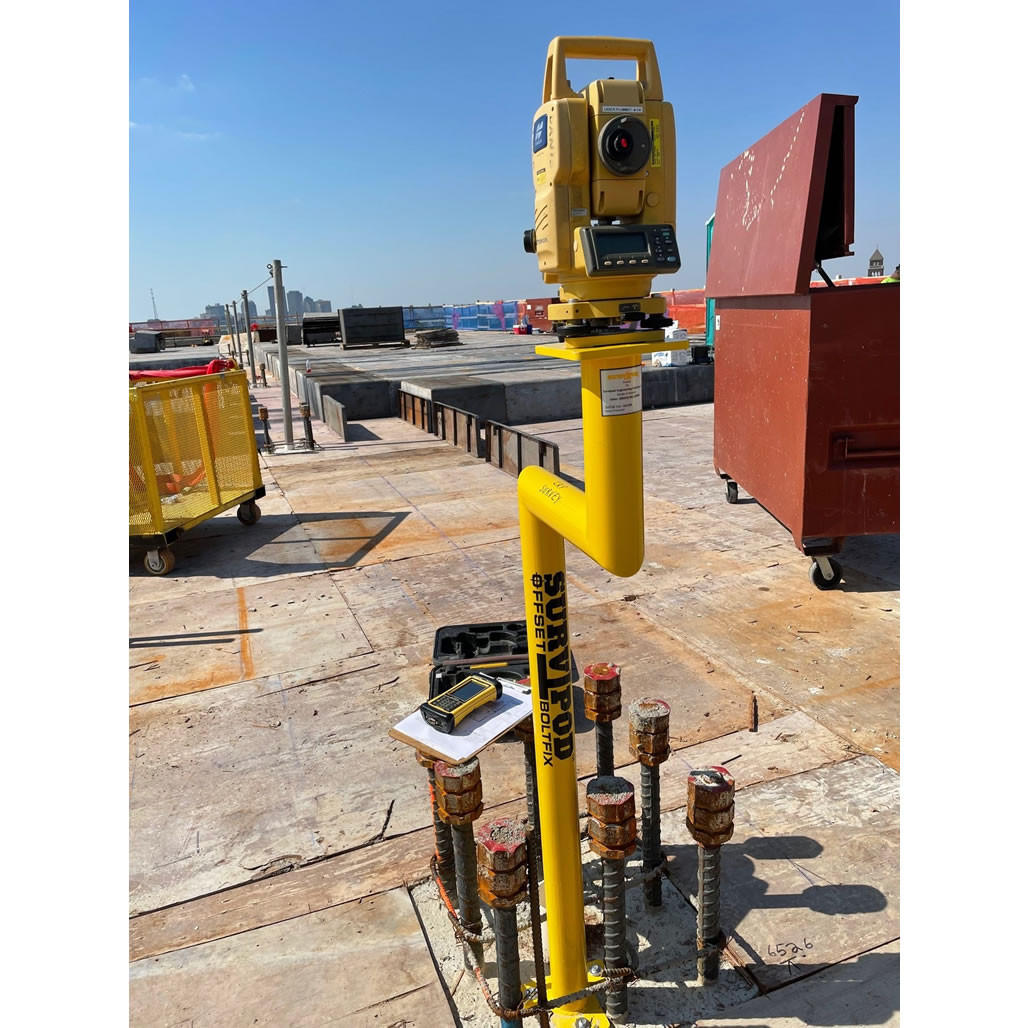

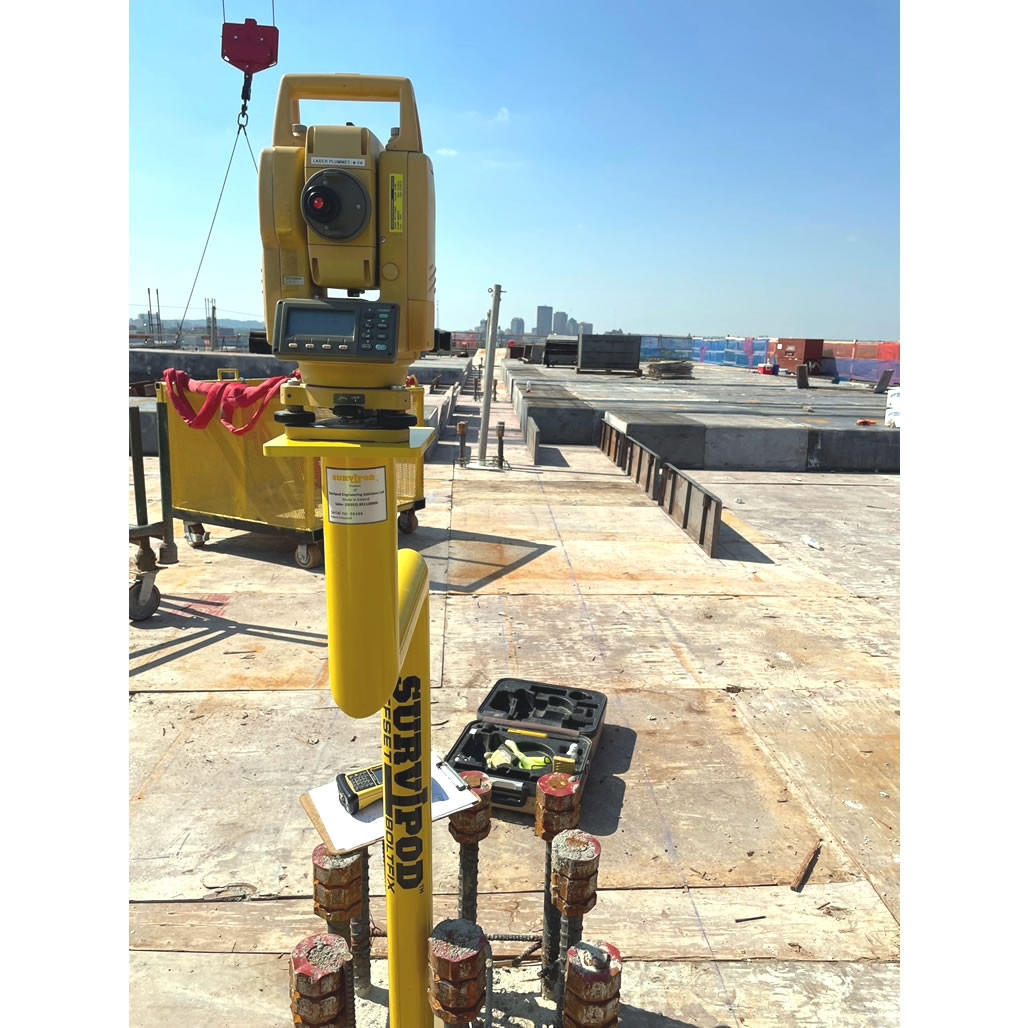

The Offset Survipod Boltfix is bolted to the steel or bolted down to the concrete. The instrument of choice (total station, dumpy or laser level) is then screwed onto the stainless steel thread on top of the Boltfix.

Dimensions

Height: 1350mm
Offset: 300mm
Top Plate: 150 x 150mm
Diameter: 76mm
Weight: 13kg
