RSMP390 360 Rotating Prism Target

Description

Product Description

Magnetic mini prism with copper coated ?25.4mm prism can be rotated and tilted.

Features:

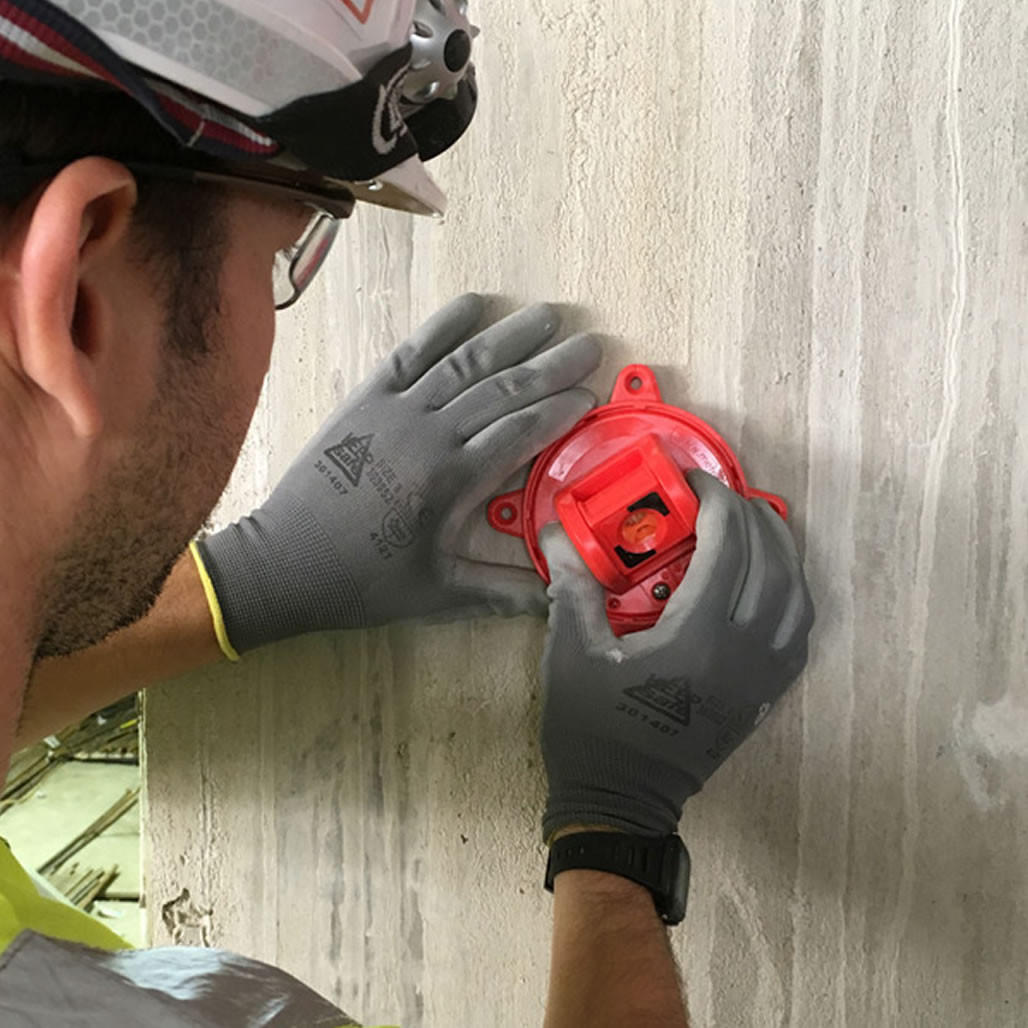

• Magnetic for easy installation on steel structures
• For use in conjunction with RSFP-X90 fix points
• Prism can always be aligned accurately with the measuring instrument
• Prism can be turned in a radius of 180¡ã, making it possible to use the same survey point from different directions
• Bridges, facades and many other structures can be monitored even more quickly and precisely
• When robotic total stations are used permanent settlement measurements can be carried out during construction
• ATR mode ranges of 500m to 700m are obtained

The ranges are dependent on the device and can be adversely affected by weather and environmental conditions.

When sighting measuring points that are already known, with robotic total stations it is possible to achieve
ranges of up to 1000m. Depending on the focus, ranges of approx. 200m are achieved for measurements in manual mode.

Prism Details:

• 25.4mm mini prism
• Offset: -16.9 (minus 16.9) [Leica +17.5]
• Tilting axis height:45mm
