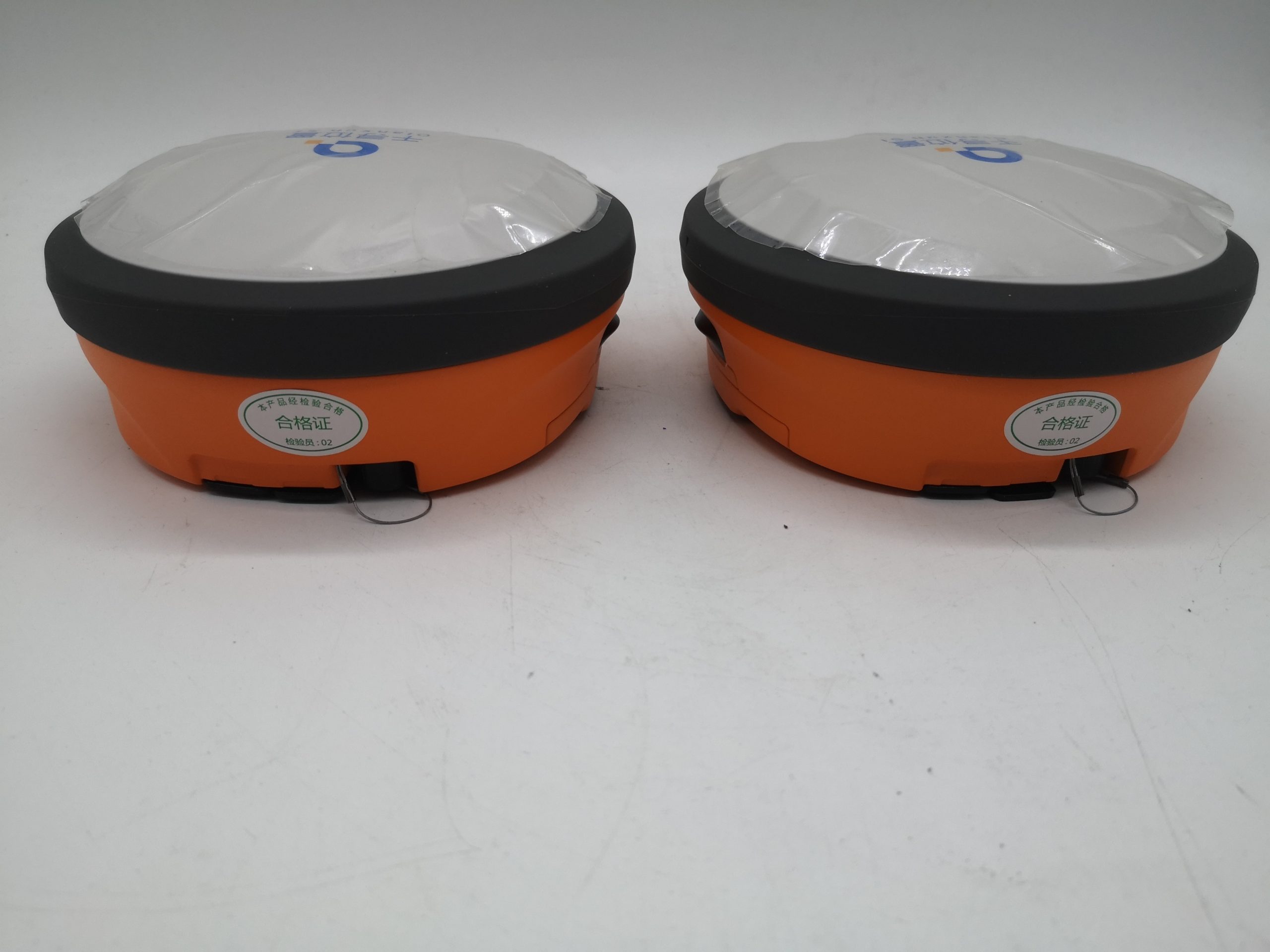

Qianxun IP67 GPS RTK Receiver Tilt Survey RTK GNSS Qianxun SR3
$2,600.00
Did you like this product? Add to favorites now and follow the product.
(+800) 1234 5678 90 Start Live Chat
Description
| Communication Bluetooths: | V2.1+EDR/V4.1DualMode,Class2 | Communication WIFI: | 802.11b/g/n |
|---|---|---|---|
| Communication 4G: | GSM/GPRS/EDGE/LTE/UMTS/WCDMA | Communication Internal UHF: | Transmitpower1W, Frequency |
| Communication Work Distance: | 5Km In Optimal Environment | Communication WEB UI: | To Manage The Status And Settings,upgrade Firmware, Data Download |
| Communication Tilt Survey: | Support | Communication Electric Bubble: | Enable |
| Operating Temperature: | -30¡æ~+65¡æ | Storage Temperature: | -40¡æ~+80¡æ |
| Water/Dust Proof: | IP67 | ||
| Highlight: | IP67 GPS RTK Receiver
, Tilt Survey GPS RTK Receiver , SR3 RTK GNSS Receiver |
||
Qianxun IP67 GPS RTK receiver Tilt Survey RTK GNSS Qianxun SR3 price?.
Technical parameter
| Static Accuracy | |||||
| Horizon: | 2.5mm+1ppmRMS | ||||
| Vertical: | 5mm+1ppmRMS | ||||
| RTK Accuracy | |||||
| Horizon: | 8mm+1ppmRMS | ||||
| Vertical: | 15mm+1ppmRMS | ||||
| SBAS Accuracy | |||||
| Horizon: | 0.6mRMS | Horizon: | 0.3mRMS | Horizon: | 0.5mRMS |
| Code Differential Accuracy | |||||
| Horizon: | 0.4mRMS | Horizon: | 0.25mRMS | Horizon: | 0.25mRMS |
| Update rate | |||||
| Up to 100HZ | Upto50Hz | Upto50Hz | |||
| Power Supply | |||||
| Battery | Dual rechargeble batteries,7.20V/3400mh*2 | ||||
| Working time | Upto10hours | ||||
| Input | 9-28VDC, withover-voltage protection | ||||
| Data Interface | |||||
| TNC | For UHF Anternal power | ||||
| 5-pin | External radio and external power | ||||
| 7-pin | Connect to PC controller and other-external device,such as Echo Sounder | ||||
| Others | SIM slot and TF slot | ||||
| Indicator | 4 indicators,Satellites,Datalink,Bluetooths,WIFI Status. | ||||
| Communication | |||||
| Memory | Internal8G;Removable memory, support TF card | ||||
| bluetooths | V2.1+EDR/V4.1DualMode,Class2 | ||||
| WIFI | 802.11b/g/n | ||||
| 4G | GSM/GPRS/EDGE/LTE/UMTS/WCDMA | ||||
| Internal UHF | Transmitpower1W, Frequency | ||||
| Work Distance | 5Km in optimal environment | ||||
| WEB UI | To manage the status and settings,upgrade firmware, data download | ||||
| Electric Bubble | Enable | ||||
| Tilt Survey | Support | ||||
| Physical | |||||
| Dimension | 156mm*76mm | ||||
| Weight | 1.2KG with 2 batteries inside | ||||
| Environment | |||||
| Operating Temperature | -30¡æ~+65¡æ | ||||
| Storage Temperature | -40¡æ~+80¡æ | ||||
| Water/Dust Proof | IP67 | ||||
| Shock | Survivea2m(6.6ft) poledrop,1.2m | ||||
| Vibration | Vibration resistant | ||||
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
