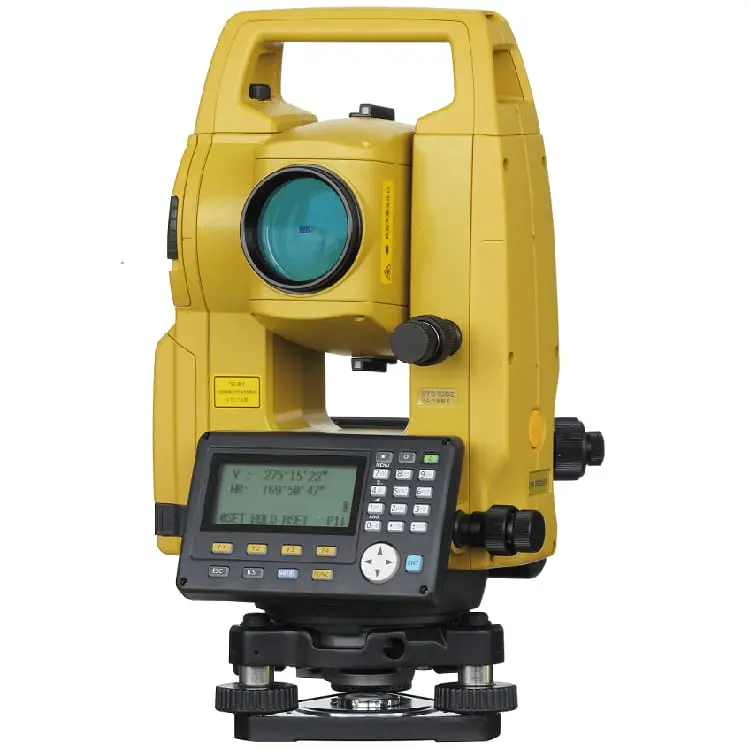

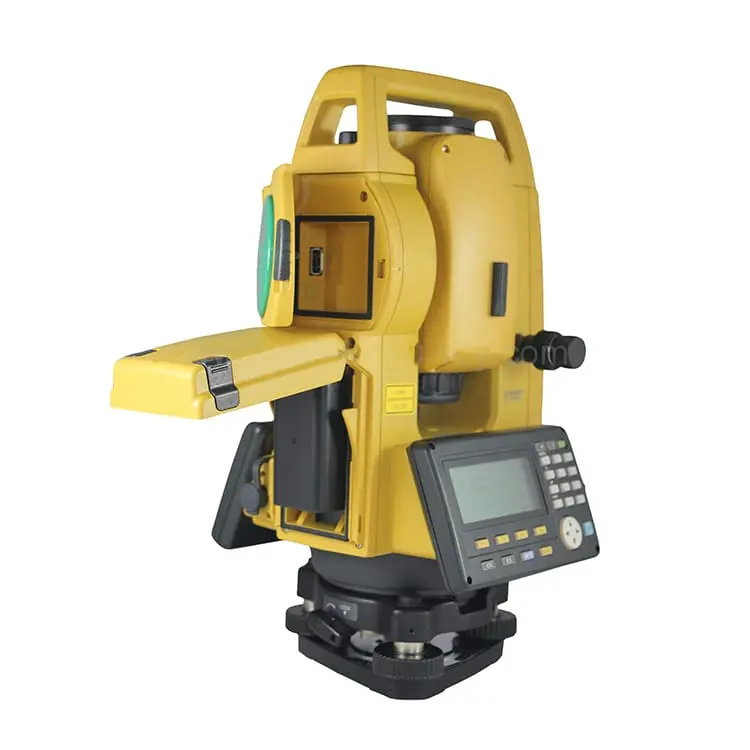

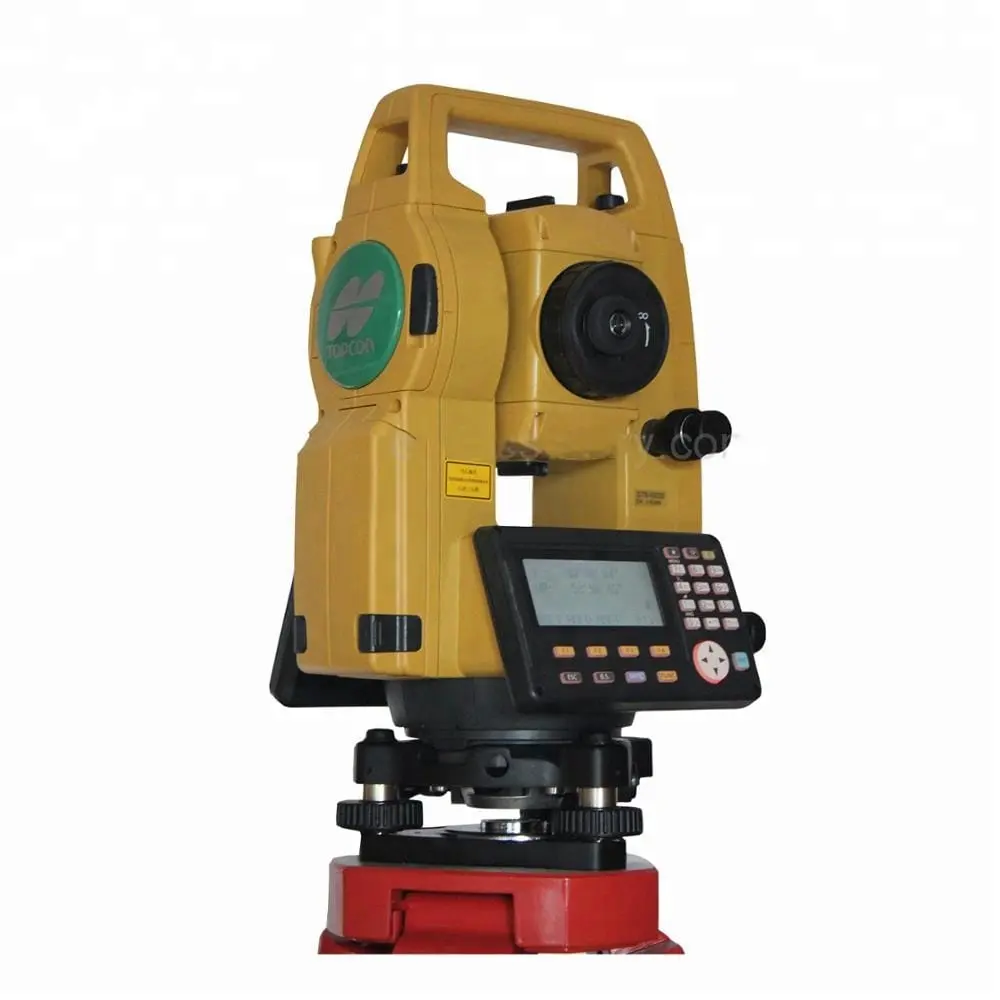

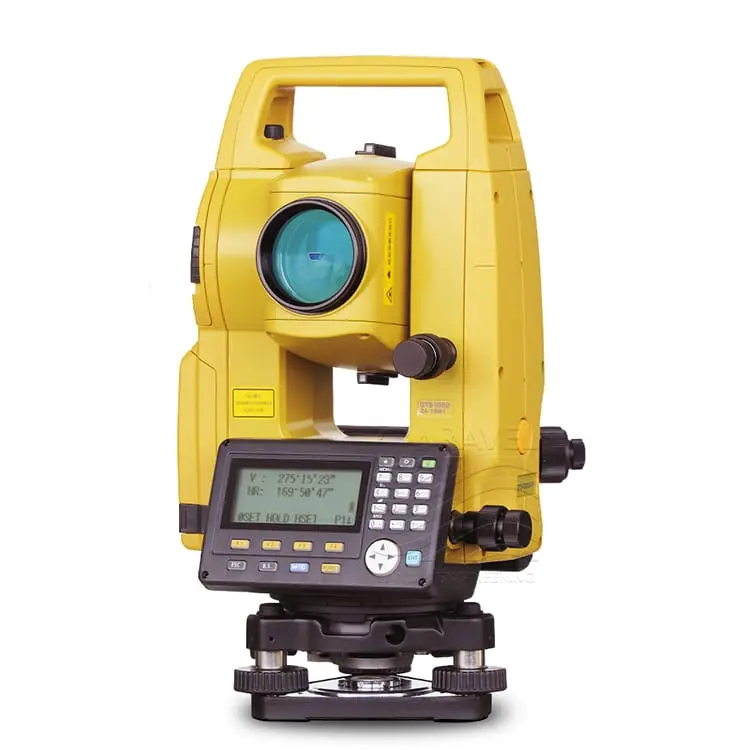

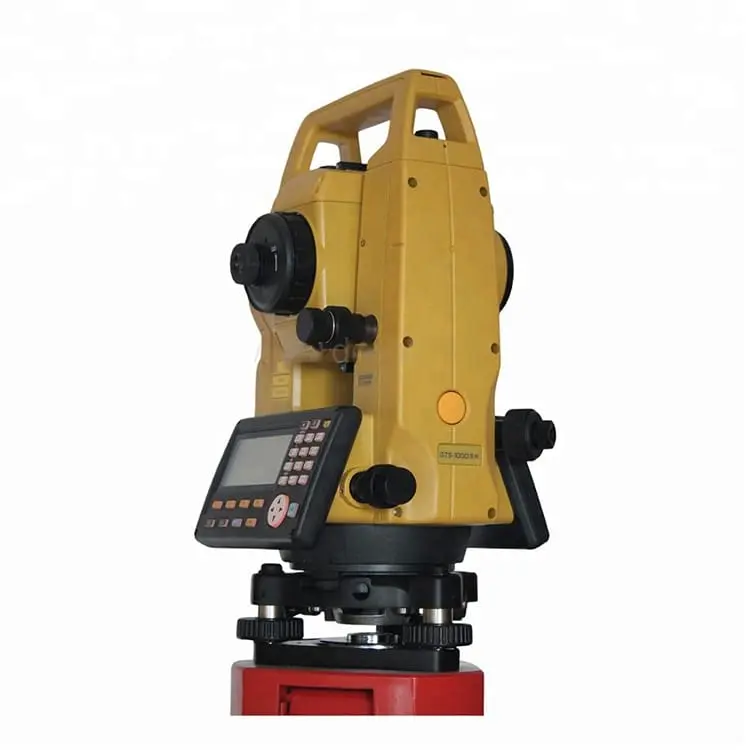

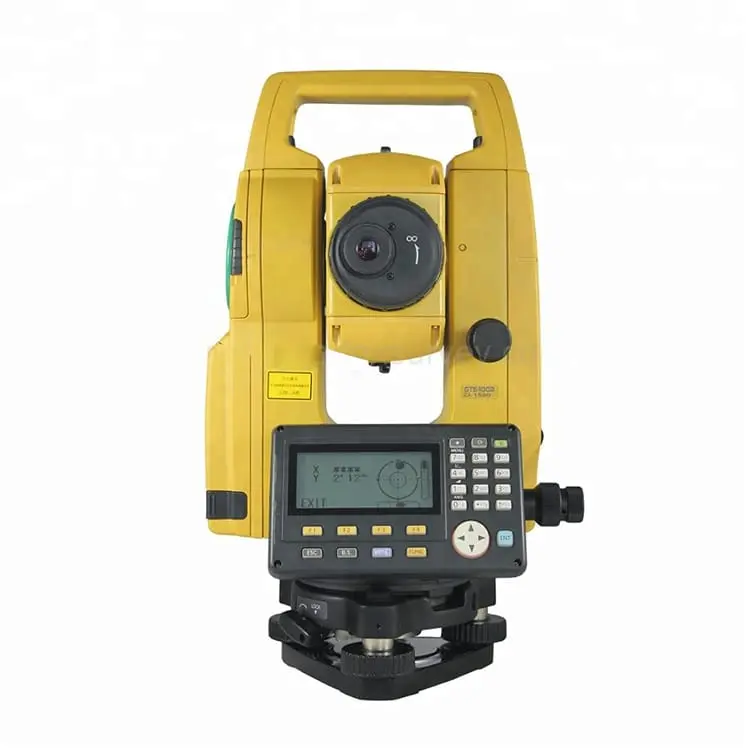

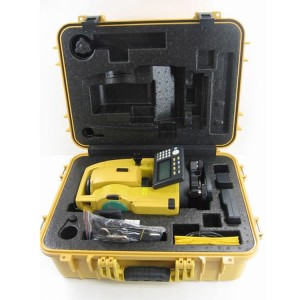

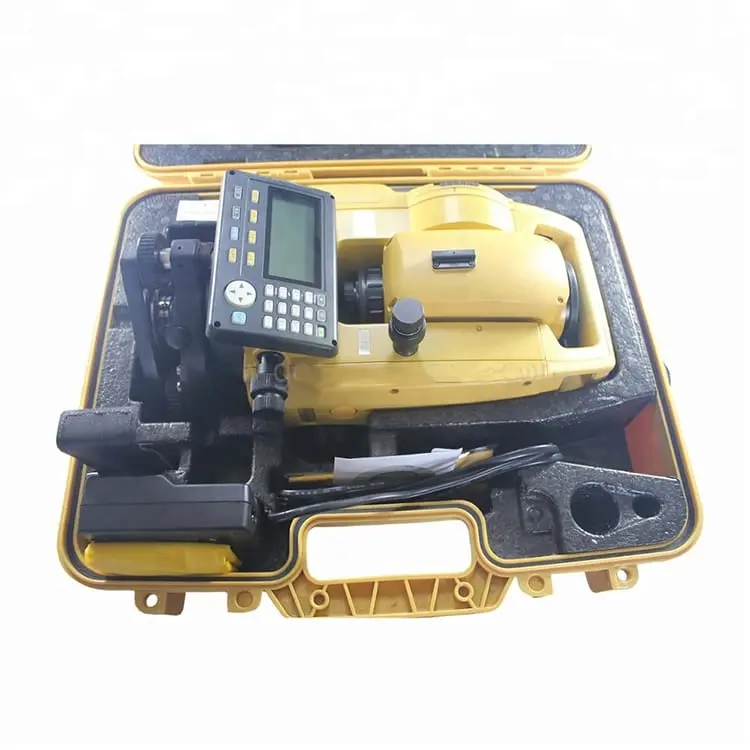

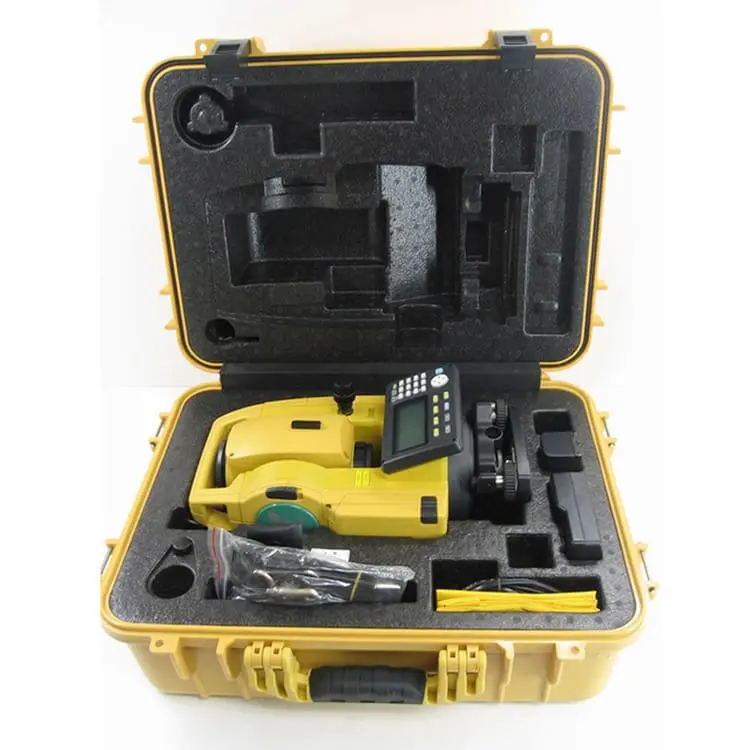

Optics used Instruments GTS1002 Topcan Total Station
$2,000.00
Did you like this product? Add to favorites now and follow the product.
(+800) 1234 5678 90 Start Live Chat
Description
HOW TO READ THIS MANUAL
Thank you for?selecting the GTS-1002
??Please read this Operator¡¯s manual carefully,?before using this?product.
??GTS has a function?to?output?data?to?a connected host computer.?Command operations from a host computer?can also be performed. For details, refer?to ¡°Communication manual¡± and ask your local dealer.
??The specifications and general?appearance of?the instrument?are subject to change without?prior notice and?without obligation by TOPCON?CORPORATION?and may differ?from?those appearing in?this manual.
??The content?of this manual is subject?to?change without notice.
??Some of the diagrams shown in?this manual may be simplified?for easier understanding.
??Always keep this manual in?a convenient?location and read it when necessary.
??This manual is protected by copyright?and all rights are reserved by TOPCON?CORPORATION.
??Except?as permitted by Copyright law,?this manual may not be copied, and no?part?of this manual may be?reproduced in?any form?or by any means.
??This manual may not be modified, adapted or?otherwise used for the?production of derivative?works.
Symbols
The following conventions?are used in this manual.
e?:?Indicates precautions and important?items?which should be read before operations.
a?:?Indicates the chapter title to refer to for additional information.
B?:?Indicates supplementary explanation.
Notes regarding?manual style
??Except?where stated, ¡°GTS¡±?means /GTS1002.
??Screens and?illustrations appearing in?this manual are of GTS-1002.
??Learn?basic?key operations in ¡°BASIC?OPERATION¡±?before you read each measurement procedure.
??For?selecting options and inputting figures, see ¡°Basic?Key Operation¡±?.
??Measurement procedures are based?on?continuous?measurement. Some information about?procedures
when other measurement?options?are?selected can be found in?¡°Note¡±?(B).
??Bluetooth??is?a registered trademark of Bluetooth SIG,?Inc.
??KODAK is?a registered trademark of Eastman Kodak Company.
??All other company and product?names featured in?this?manual?are trademarks or?registered trademarks?of?each respective organization.
Specification
| Model | GTS-1002 |
| Telescope | |
| Magnification/Resolving power | 30X/2.5¡å |
| Other | Length: 150mm, Objective aperture: 45mm (EDM:48mm), |
| Image: Erect, Field of view: 1¡ã30¡ä (26m/1,000m), | |
| Minimum focus: 1.3m | |
| Angle measurement | |
| Display resolutions | 1¡å/5¡å |
| Accuracy (ISO 17123-3:2001) | 2¡± |
| Method | Absolute |
| Compensator | Dual-axis liquid tilt sensor, working range:? ¡À6¡ä |
| Distance measurement | |
| Laser output level | Non prism: 3R Prism/ Reflector? 1 |
| Measuring range | |
| (under average conditions *1 ) | |
| Reflectorless | 0.3 ~ 350m |
| Reflector | RS90N-K:1.3 ~ 500m |
| RS50N-K:1.3 ~ 300m | |
| RS10N-K:1.3 ~ 100m | |
| Mini prism | 1.3 ~ 500m |
| One prism | 1.3 ~ 4,000m/ under average conditions *1 : 1.3 ~ 5,000m |
| Accuracy | |
| Reflectorless | (3+2ppm¡ÁD)mm |
| Reflector | (3+2ppm¡ÁD)mm |
| Prism | (2+2ppm¡ÁD)mm |
| Measurement time | Fine: 1mm: 0.9s? Coarse: 0.7s, Tracking: 0.3s |
| Interface and Data management | |
| Display/keyboard | Adjustable contrast, backlit LCD graphic display / |
| With backlit 25 key (alphanumeric keyboard) | |
| Control panel location | On both faces |
| Data storage | |
| Internal memory | 10,000pts. |
| External memory | USB flash drives (maximum 8GB) |
| Interface | RS-232C;? USB2.0 |
| General | |
| laser Designator | Coaxial red laser |
| Levels | |
| Circular level | ¡À6¡ä |
| Plate level | 10¡ä /2mm |
| Optical plummet telescope | Magnification: 3x, Focusing range: 0.3m to infinity, |
| Dust and water protection | IP66 |
| Operating temperature | ¡°-20 ~ +60¡æ |
| Size | 191mm(W)¡Á181mm(L)¡Á348mm(H) |
| Weight | 5.6kg |
| Power supply | |
| Battery | BT-L2? lithium battery |
| Working time | 25 hours |
