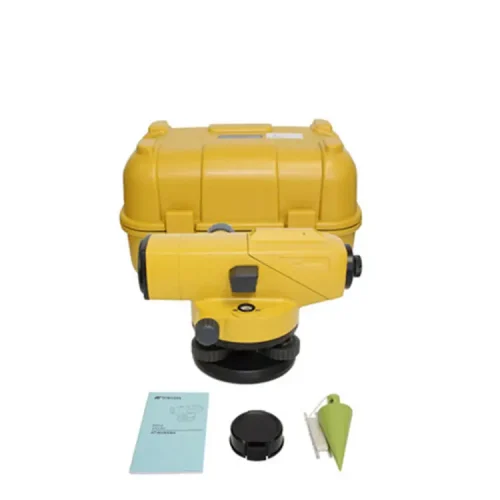

Electronic Auto Level 0 . 5M Min Focus Range 360 / 400 Degree Horizontal Circle
$70.00
In Stock
Did you like this product? Add to favorites now and follow the product.
Have a Question? Ask a Specialist
(+800) 1234 5678 90 Start Live Chat
Description
Detail Information
| Product Name: | Auto Level | Min Focusing Range: | 0.5m |
|---|---|---|---|
| Weight: | 1.6Kg | Model: | GAL32X |
| Horizontal Circle: | 360 / 400 Circle | Min Focus Range: | 0 . 5M |
| Highlight: | automatic level machine
, automatic level instrument |
||
Product Description
| Item?no.: | GAL20 | GAL24 | GAL28 | GAL32 |
| Magnification: | 20X | 24X | 28X | 32X |
| Standard?deviation?for?1km: | 2.5mm | 2.0mm | 1.5mm | 1.5mm |
| Double?run?leveling
Objective?Aperture: |
34mm | 36mm | 36mm | 38mm |
| Field?of?View: | 1¡ã20′ | |||
| Shortest?Focus?Distance: | 0.5m | |||
| Compensator?type: | wire-hung?and?air-damping
with?locking?system |
|||
| Working?range?of?compensator: | ¡À15′ | |||
| Levelling?accuracy: | ¡À0.8″ | ¡À0.6″ | ¡À0.5″ | ¡À0.5″ |
| Circular?vial: | 8’/2mm | |||
| Horizontal?circle: | 360¡ãor?400G?for?option. | |||
| Weight: | 1.6kg | |||
| Standard?outfit: | Automatic?Level,?plumb?bob,?adjusting?wrench,
instruction?manual,?plastic?carrying?case. |
|||
