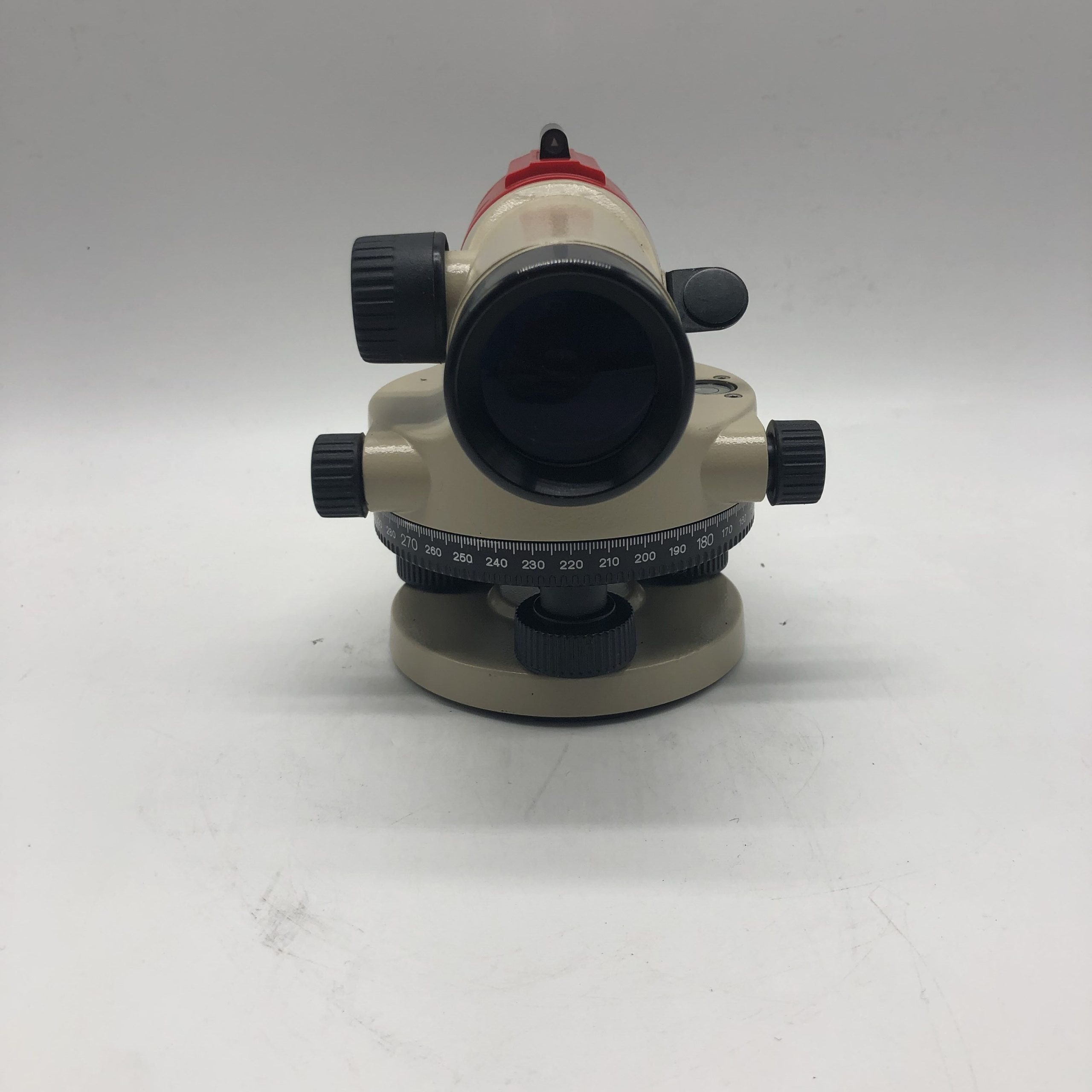

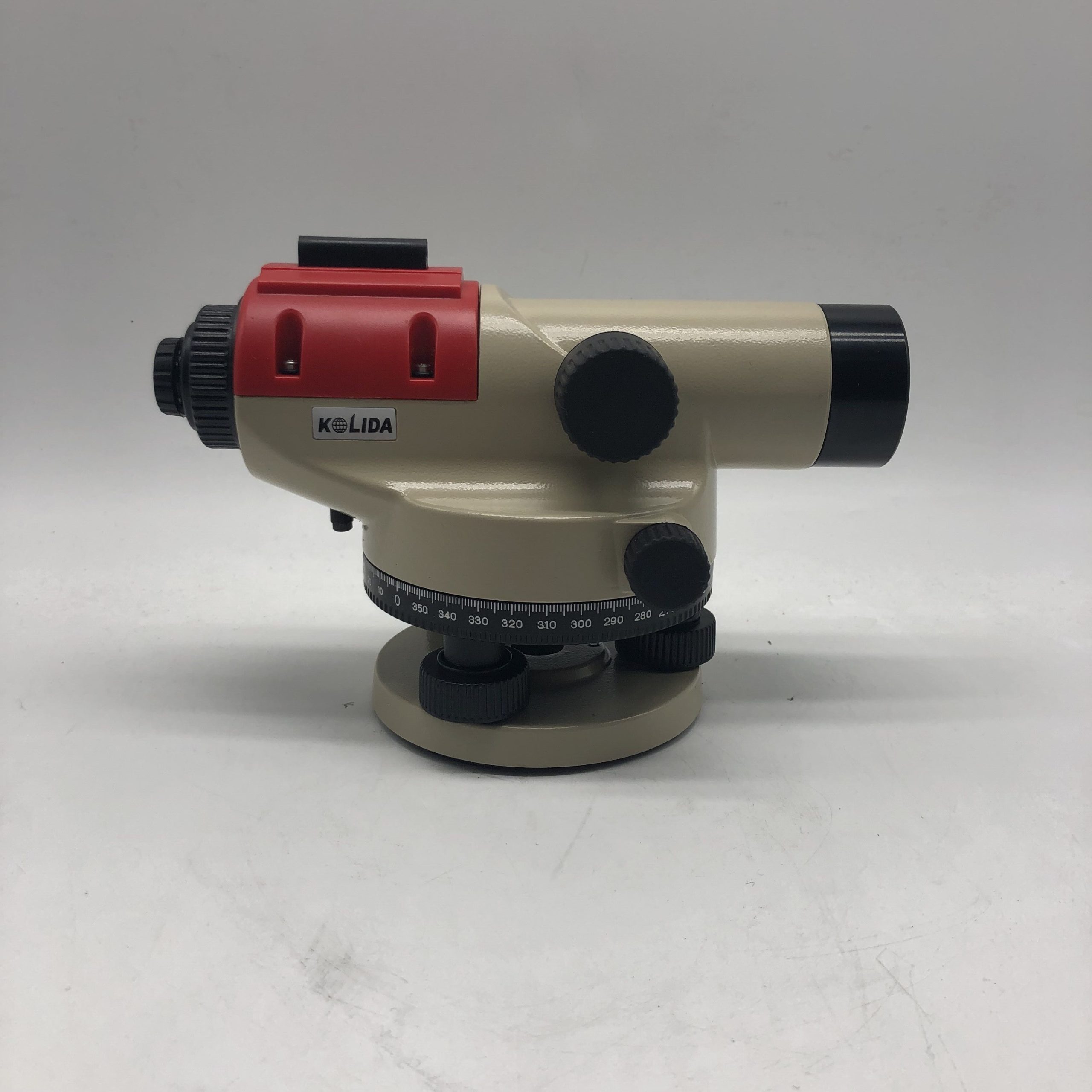

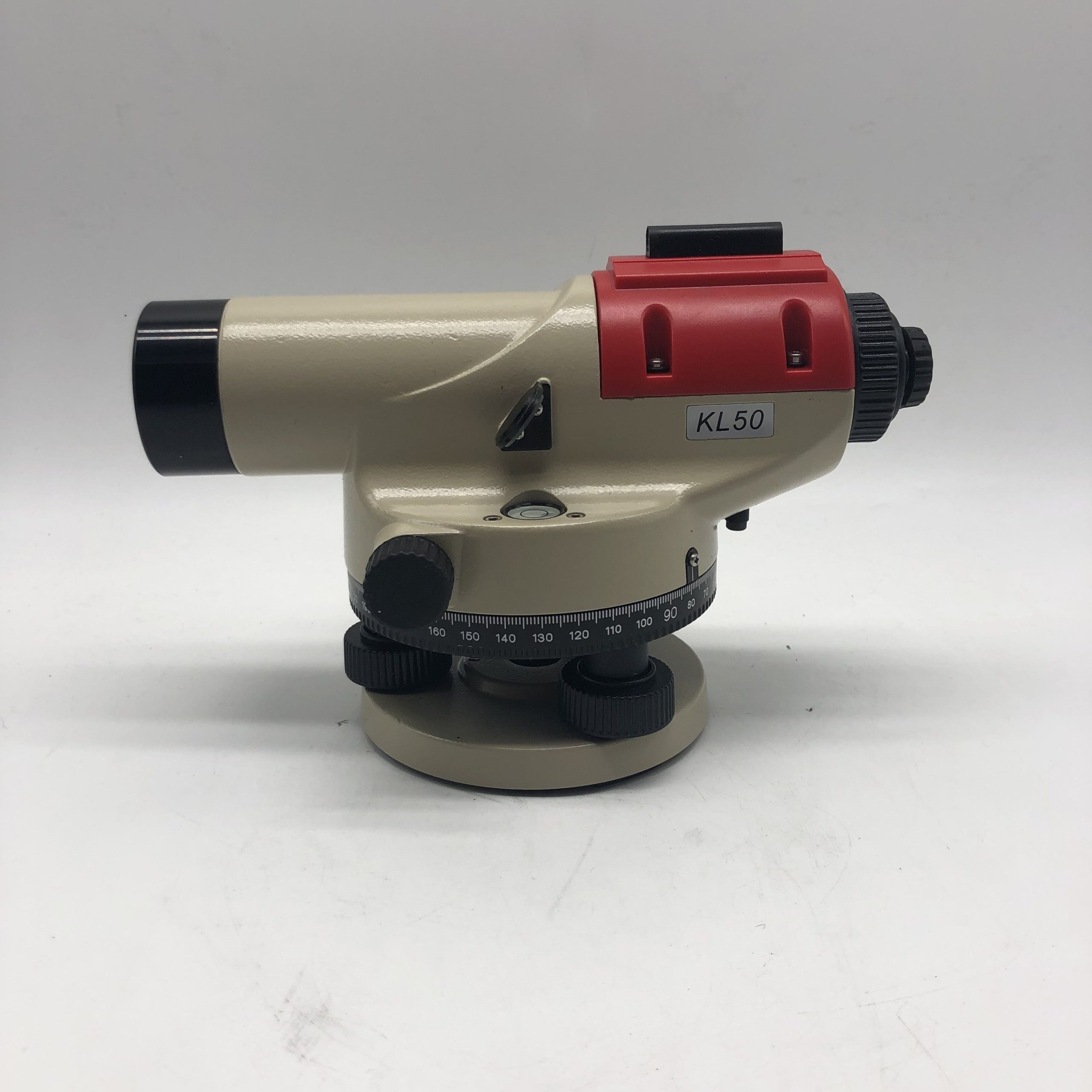

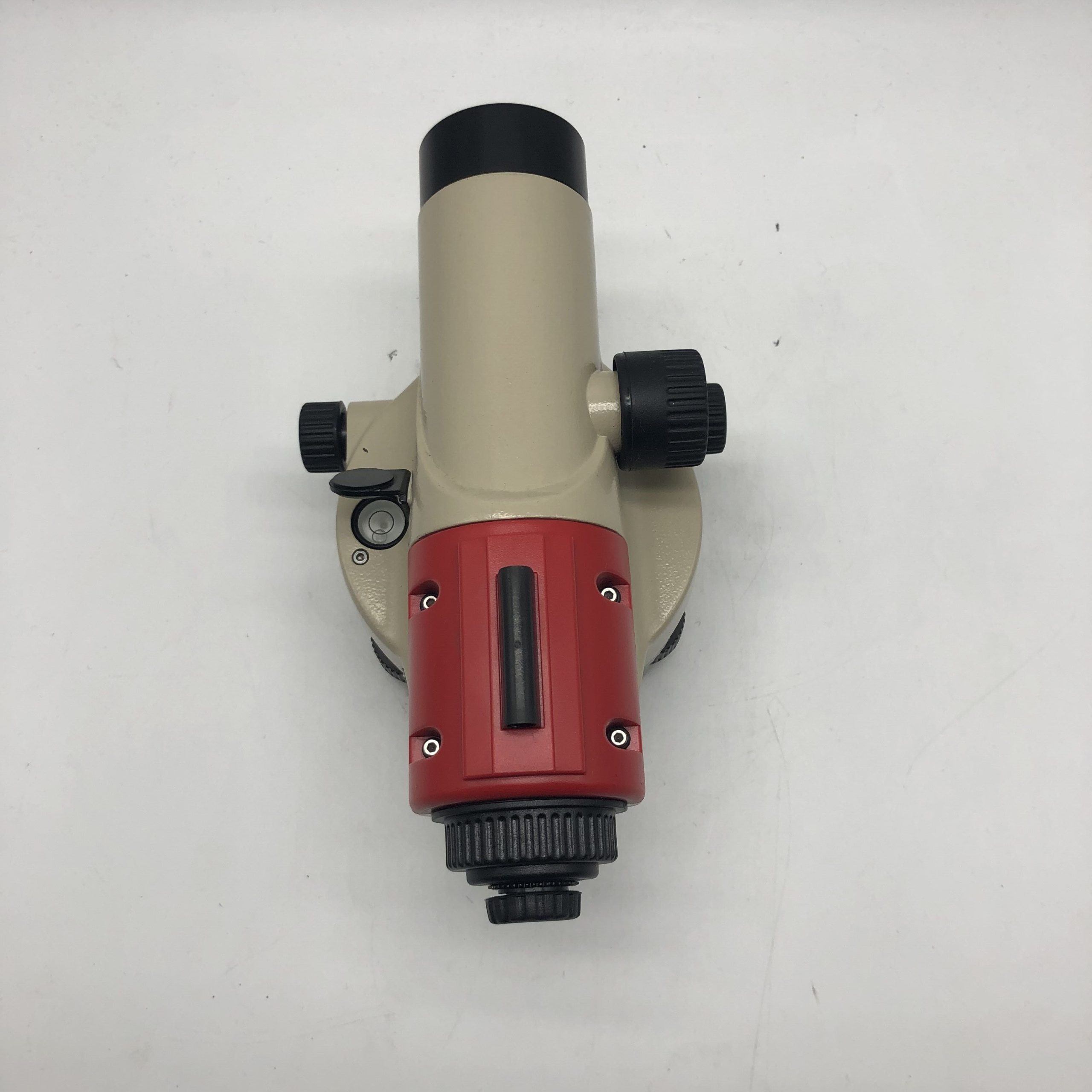

32X Magnification Dumpy Level Machine , High Precision Dumpy Level Instrument

Low quality great price sales
The latest patented technology compensator
Excellent shock resistance
Unique air + magnetic damping
Perfect weather-resistant construction
Accuracy: 3mm / km

32 rate, ranging accuracy of 3mm/km, can be widely used in building engineering, engineering supervision, decoration engineering, elevator engineering, water supply and drainage engineering, air conditioning purification project, fire fighting mechanical and electrical engineering, swimming pool construction, entertainment facilities engineering, etc.

Minimum sight distance: 0.3m
Standard deviation of measurement per kilometer: 3.0mm
Imaging: positive image
Magnification: 32 x
Objective aperture: 38mm
Field angle: 1 degrees 20 ‘
Multiplier constant: 100
Additive constant: 0
Anping range: ¡À 15 ‘
Compensation accuracy: ¡À 0.5 ”
Blister accuracy: 8 ‘/ 2mm
The dial index value: 1 degrees /1 log
Instrument net weight: 1.25Kg
Three leg linkage: M16 or 5/8 ”
